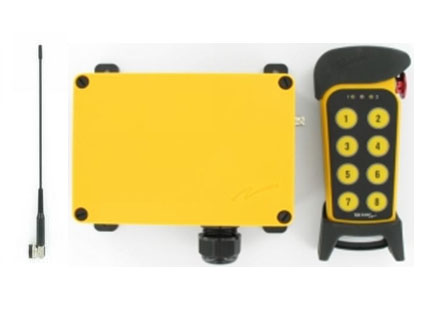

PRODUCT CODE: JAGUAR SYSTEM TR-JA-TX2E-M15
MANUFACTURERS CODE: TR-JA-TX2-E
DESCRIPTION
Frequency: 433 – 434 MHz , 64 channels
Receiver: TR-JA-RX-MX15
No. of function relays: 15 (13 function relays + 2 dump relay)
Duplex: No
Power supply: 12/24/155/230V (AC/DC)
Max current consumption: 300 mA
Dimensions: ~ 175 x 125 x 75 mm / ~ 6.9 x 4.9 x 2.9 in
Protection: IP66
Radio type: Low IF topology
Sensitivity: -105 dBm
Bus system: None
Relay functionality: Momentary, Interlock
Temperature: -20 to +55 C / -4 to +130 F
No. of channels: 64 divided into 4 banks
Max. number of transmitters: 2
Antenna: 1 external BNC, 1/2-433
