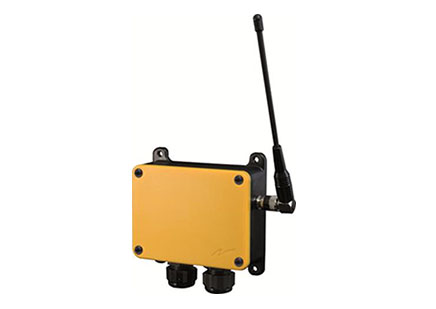

PRODUCT CODE: RECEIVER TR-JA-RX-MN3
MANUFACTURERS CODE: T70RX-03A*B
DESCRIPTION
Frequency: 433 MHz , 64 channels
No. of function relays: 3
Duplex: No
Power supply: 6-26V AC/DC
Max current consumption: 20 mA
Dimensions: ~ 133 x 120 x 45 mm / ~ 5.2 x 4.7 x 1.8 in
Protection: IP65
Radio type: Low IF topology
Sensitivity: -105 dBm
Bus system: None
Relay functionality: Momentary, Interlocking
Antenna: 1 external BNC
Temperature: -20 to +55 C / -4 to +130 F
Max. number of transmitters: 3
Recommended transmitters/accessories: T70TX-02TTB
