PRODUCT CODE:
MANUFACTURERS CODE:
DESCRIPTION
LRS 2102R ++ SET 433,92 MHz – Cod. 96630007
LRH 2102R ++ 433,92 MHz – Cod. 96220000

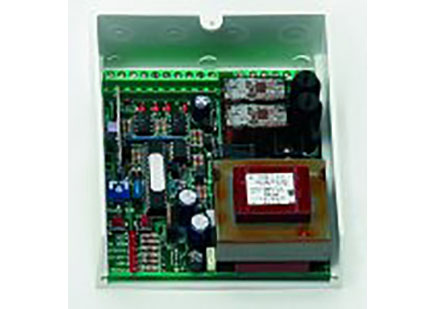

Electronic control unit for automation of sliding and overhead gates with built-in radio receiver. It is equipped with initial motor boost, motor power adjustment, deceleration, limit switch inputs, electronic brake, pedestrian passage, dead mean in closing mode; soft start, inversion time selection.To see other functions, please check tab. 2.
|
Power supply
|
230 Vac – 50/60 hz – 100W Max.
|
|
Flashing beacon output
|
230 Vac – 500W Max.
|
|
Motor outputs
|
230 Vac – 500 W Max.
|
|
Auxiliary power output
|
24 Vac – 3 W Max.
|
|
Low voltage commands, safety devices and limit switches imputs
|
24 Vdc
|
|
Nr possible radio controls
|
215 Max.
|
|
Box size
|
110×121×47 mm
|
SEAV s.r.l. hereby declares that the below products: Electronic Control Unit: LG 2102R ++ – LRS 2102R ++ LRS 2102R ++ SET – LRH 2102R ++ comply with the requirements of Directives R&TTE 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
