PRODUCT CODE:
MANUFACTURERS CODE:
DESCRIPTION
LRS 2150 UPD SET 433,92 MHz – Cod. 96710005
LRH 2150 UPD 868,3 MHz – Cod. 96360000

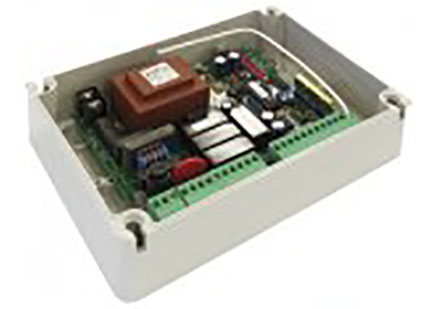

Electronic control unit for the automation of swinging gates with built-in radio receiver.
It is equipped with initial motor boost, motor power adjustment and other useful functions (see tab. 1).
|
Power supply
|
230 Vac 50/60 Hz – 1600W Max.
|
|
Flashing beacon output
|
230 Vac – 500W Max.
|
|
Motor outputs
|
230 Vac – 500 W Max.
|
|
Electric lock output
|
12 Vdc 15 W Max.
|
|
Photoelectric cells power supply
|
24 Vac – 3 W Max.
|
|
Low voltage safety devices and commands imputs
|
24 Vdc
|
|
Nr possible radio controls
|
150 Max.
|
|
Box size
|
190×140×70 mm
|
SEAV s.r.l. hereby declares that the products below: Electronic Control Unit: LG 2150 – LRS 2150 – LRS 2150 SET – LRH 2150 comply with the requirements of Directives R&TTE 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
