DESCRIPTION
LRS 2186 SET 433,92 MHz – Cod. 96660000
LRH 2186 868,3 MHz – Cod. 93670000

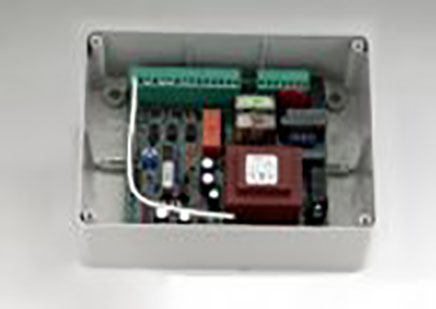

Electronic control unit for sliding gates and overhear door with built-in radio receiver.
It is equipped with initial motor boost, motor power adjustment, deceleration, limit switches inputs. You can use LRX 2186 with ML2192 module to connect and manage two traffic lights.
|
Power supply
|
230 Vac – 50/60 Hz – 1100W Max.
|
|
Flashing beacon output
|
230 Vac – 500W Max.
|
|
Motor outputs
|
230 Vac – 500 W Max.
|
|
Electric lock output
|
230 Vac – 500 W Max.
|
|
Photoelectric cells power supply
|
24 Vac – 3 W Max.
|
|
Low voltage commands, safety devices and limit switches imputs
|
24 Vdc
|
|
Nr possible adio controls
|
150 Max.
|
|
Box size
|
190×140×70 mm
|
SEAV s.r.l. hereby declares that the products below: Electronic Control Unit: LG 2186 – LRS 2186 – LRS 2186 SET – LRH 2186 complies with requirements of Directives R&TTE 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
