DESCRIPTION

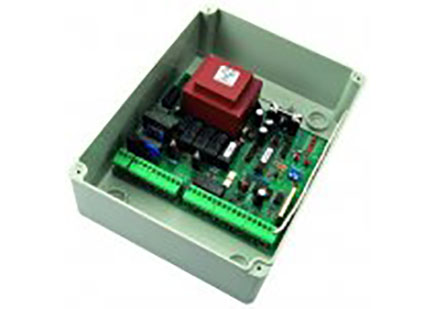

LRS 2212 SET 433,92 MHz – Cod. 96590000
LRH 2212 868,3 MHz – Cod. 93660000
Electronic control unit for the automation of sliding and swinging gates, with built-in radio receiver. Initial motor boost, motor power adjustment, deceleration, adjustable deceleration power function.It is possible to manage control buttons for different ways of working. Several functions available (see tab.1) to satisfy your needs in installation.
|
Power supply
|
230 Vac – 50/60Hz – 1600W Max.
|
|
Flashing beacon output
|
230 Vac – 500W Max.
|
|
Motor outputs
|
230 Vac – 500 W Max.
|
|
Electric lock output
|
12 Vdc – 15 W Max.
|
|
Photoelectric cells power supply
|
24 Vac – 5 W Max.
|
|
Indicator light output
|
24 Vdc 4 W Max.
|
|
Low voltage commands, safety devices and limit switches imputs
|
24 Vdc
|
|
Nr possible radio controls
|
120 Max.
|
|
Box size
|
240×185×110 mm
|
SEAV s.r.l. hereby declares that the below products: Electronic Control Unit: LG 2212 – LRS 2212 – LRS 2212 SET – LRH 2212 conform to the specifications in the Directives R&TTE 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
