PRODUCT CODE:
MANUFACTURERS CODE:
DESCRIPTION
LRS 2218 SET 433,92 MHz – Cod. 96240000
LRH 2218 868,3 MHz – Cod. 93770000

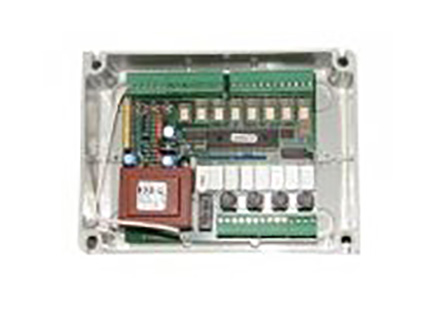

Electronic control panel for sun blinds, rolling shutters and venetian blinds, with built-in radio receiver. Individual or centralized commands for 4 motors. In centralized working mode, you can select simultaneous or sequential start-up. Control buttons for local or zone or centralized command. Inputs to connect wind sensor, sun sensor and rain sensor too. WiSun and WiWeather wireless sensors compatible. (see table 3 for a complete list of functions).
|
Power supply
|
230 Vac – 50/60Hz – 1700W Max.
|
|
Motor output
|
230 Vac – 400W Max.
|
|
Nr possible radio controls
|
60 Max.
|
|
Nr possible wireless sensors
|
3 Max.
|
|
Box size
|
190x140x70 mm
|
SEAV s.r.l. declares that the products: LG2218 – LRS2218 – LRS2218 SET – LRH2218 Conform to the specifications of the R&TTE Directives 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
