PRODUCT CODE:
MANUFACTURERS CODE:
DESCRIPTION
LRS 2239 12 Vdc SET 433,92 MHz – Cod. 93950000
LRS 2239 24 Vdc SET 433,92 MHz – Cod. 93960000

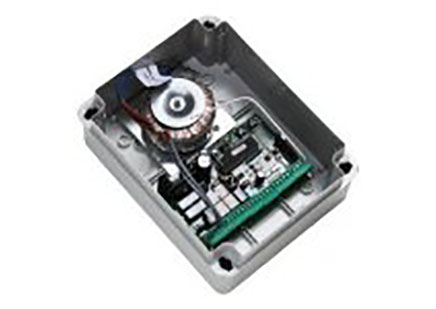

Electronic control panel for low voltage motors of sliding and swinging gates, with built-in radio receiver. Equipped with safety transformer. Possibility to connect a battery or a photovoltaic panel. Available in 12 Vdc or 24 Vdc model. Some functions are: obstacle detection, motor speed and motor power adjustment, selectable inputs functions, deceleration power selection. Several other functions available (see tab.1).
|
Transformer power supply
|
230 Vac – 50/60 Hz – 120W Max.
|
|
Control unit power supply
|
12/20* Vac – 50/60 Hz – 120W Max.
|
|
Flashing beacon output
|
12/24* Vdc – 4 W Max.
|
|
Emergency battery input
|
12 Vdc – 7A/h Max.
|
|
Motor outputs
|
12/24* Vdc – 2×50 W Max.
|
|
Electric lock output
|
12/24* Vdc – 12W Max.
|
|
Power supply to photocells
|
12/24* Vdc – 3 W Max.
|
|
Indicator light output
|
12 Vdc 3 W Max.
|
|
Nr possible radio controls
|
120 Max.
|
|
Box size
|
240×190×110 mm
|
* it depends if it is 12 Vdc control panel unit or 24 Vdc control panel unit.
SEAV s.r.l. declares that the product: Electronic panel LRX 2239 complies with the requirements of Directives R&TTE 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
