PRODUCT CODE:
MANUFACTURERS CODE:
DESCRIPTION
LRS 2247 SET 433,92 MHz – Cod. 96270000
LRH 2247 868,3 MHz – Cod. 96330000

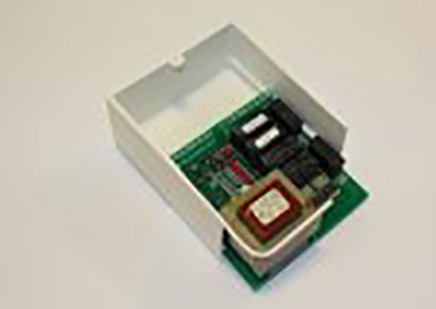

Electronic control panel for sun blinds, rolling shutters and venetian blinds, with built-in radio receiver. Individual or synchronized commands for 2 motors and selection control buttons’s working mode for local or general commands. Automatic motor timer. Inputs to connect wind sensor and rain or sun sensor. WiSUN and WiWEATHER wireless sensors compatible ( only for LRS 2247 SET 433,92MHz version). See table 3 for a complete list of functions.
|
Power supply
|
230 Vac – 50/60Hz – 1250W Max.
|
|
Motor output
|
230 Vac – 600W Max.
|
|
Nr possible radio controls
|
8 Max.
|
|
Nr possible wireless sensors
|
1 Max.
|
|
Box size
|
110x121x47 mm
|
SEAV s.r.l. hereby declares that the below products:LRS2247 SET – LRH 2247 conform to the specifications in the Directives R&TTE 99/5/EC, EMC 2004/108/EC, LVD 2006/95/EC.
